整体硬质合金三刃扩孔钻

来源:未知    编辑:weimeigu    时间:2015-10-20 13:26



适用加工材料
专为加工高强度材料(不锈钢、镍基合金和钛合金)而设计,也适合铸铁用,但不适合加工有色金属。

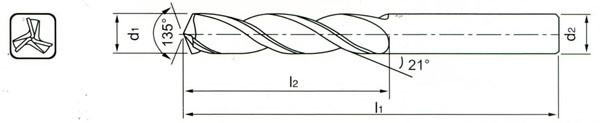

线型图


订货号Art No. 规格 Specification
不涂层 TIAIN d1 l2 l1 d2
HY003Z-0200 HY003Z-0200C 2.0 12 44 3
HY003Z-0250 HY003Z-0250C 2.5 14 45 3
HY003Z-0300 HY003Z-0300C 3.0 16 48 3
HY003Z-0350 HY003Z-0350C 3.5 20 52 4
HY003Z-0400 HY003Z-0400C 4.0 22 54 4
HY003Z-0450 HY003Z-0450C 4.5 24 68 6
HY003Z-0500 HY003Z-0500C 5.0 26 70 6
HY003Z-0550 HY003Z-0550C 5.5 28 72 6
HY003Z-0600 HY003Z-0600C 6.0 28 72 6
HY003Z-0650 HY003Z-0650C 6.5 31 75 8
HY003Z-0700 HY003Z-0700C 7.0 34 78 8
HY003Z-0750 HY003Z-0750C 7.5 34 78 8
HY003Z-0800 HY003Z-0800C 8.0 37 81 8
HY003Z-0850 HY003Z-0850C 8.5 37 87 10
HY003Z-0900 HY003Z-0900C 9.0 70 90 10
HY003Z-0950 HY003Z-0950C 9.5 40 90 10
HY003Z-1000 HY003Z-1000C 10.0 43 93 10
HY003Z-1050 HY003Z-1050C 10.5 43 100 12
HY003Z-1100 HY003Z-1100C 11.0 47 104 12
HY003Z-1150 HY003Z-1150C 11.5 47 104 12
HY003Z-1200 HY003Z-1200C 12.0 51 108 12
